GPU computing in Julia
Graphic Processing Units, or GPUs for short, were originally designed to manipulate images in a frame buffer. Their inherent parallelism makes them more efficient for some tasks than CPUs. Basically, everything that is related to SIMD operations but not limited to them. Using GPUs for general purpose computing (GPGPU) became a thing in the 21st century. NVIDIA was the first big vendor that started to support this kind of application for their GPUs and invested heavily in dedicated frameworks to aid general purpose computing and later also started to produce dedicated hardware for this purpose only. Nowadays, GPUs are used for artificial intelligence, deep learning and a lot of HPC workloads - some still use them for gaming too.
Introduction

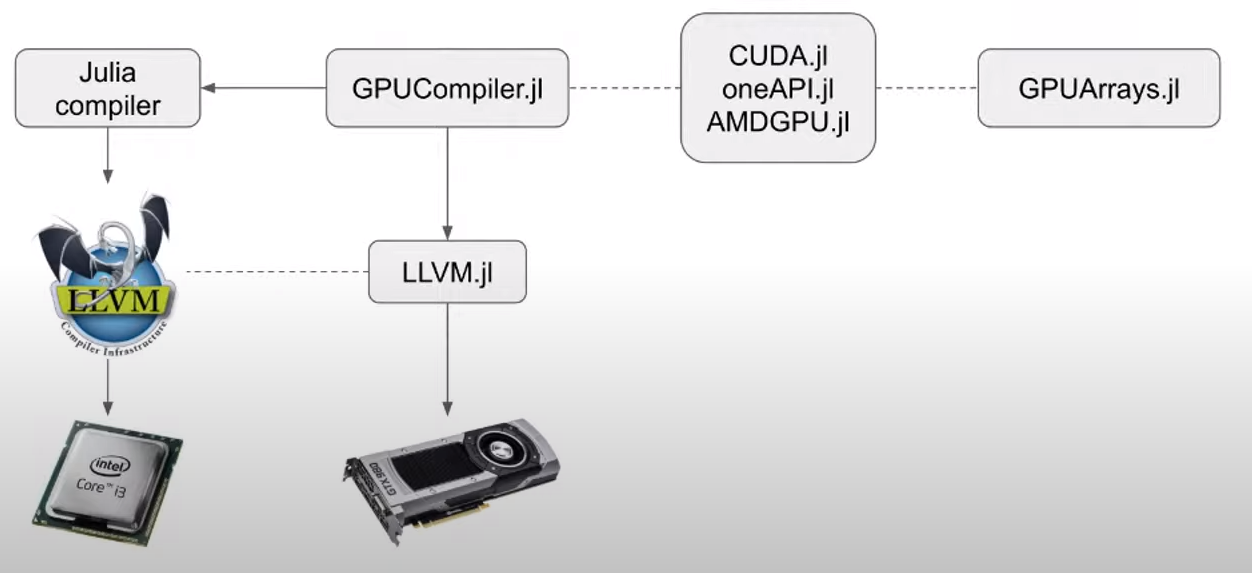

In Julia, GPUs are supported by the JuliaGPU project. They support the three big vendor frameworks:
where CUDA.jl comes with the most features. Nevertheless, in good Julia practice, the team behind JuliaGPU also included an abstraction layer, such that a lot of common functionality can be implemented without the need to specify a vendor and to do some generic GPU programming.
Nevertheless, for the rest of the section, we will focus on CUDA.jl as the card at hand is CUDA compatible.
We install the package with Pkg.add("CUDA"); using CUDA and execute the test right away, to see if the GPU is working with Julia:
julia> using CUDA
pkg> test CUDA
┌ Info: System information:
│ CUDA toolkit 11.7, artifact installation
│ NVIDIA driver 510.73.5, for CUDA 11.6
│ CUDA driver 11.6
│
│ Libraries:
│ - CUBLAS: 11.10.1
│ - CURAND: 10.2.10
│ - CUFFT: 10.7.2
│ - CUSOLVER: 11.3.5
│ - CUSPARSE: 11.7.3
│ - CUPTI: 17.0.0
│ - NVML: 11.0.0+510.73.5
│ - CUDNN: 8.30.2 (for CUDA 11.5.0)
│ - CUTENSOR: 1.4.0 (for CUDA 11.5.0)
│
│ Toolchain:
│ - Julia: 1.7.3
│ - LLVM: 12.0.1
│ - PTX ISA support: 3.2, 4.0, 4.1, 4.2, 4.3, 5.0, 6.0, 6.1, 6.3, 6.4, 6.5, 7.0
│ - Device capability support: sm_35, sm_37, sm_50, sm_52, sm_53, sm_60, sm_61, sm_62, sm_70, sm_72, sm_75, sm_80
│
│ 1 device:
└ 0: NVIDIA GeForce RTX 3070 Laptop GPU (sm_86, 7.787 GiB / 8.000 GiB available)
Test Summary: | Pass Broken Total
Overall | 17002 5 17007
SUCCESS
Testing CUDA tests passedThe full output is in the example block to preserve a bit of readability.
(@v1.7) pkg> test CUDA
┌ Info: System information:
│ CUDA toolkit 11.7, artifact installation
│ NVIDIA driver 510.73.5, for CUDA 11.6
│ CUDA driver 11.6
│
│ Libraries:
│ - CUBLAS: 11.10.1
│ - CURAND: 10.2.10
│ - CUFFT: 10.7.2
│ - CUSOLVER: 11.3.5
│ - CUSPARSE: 11.7.3
│ - CUPTI: 17.0.0
│ - NVML: 11.0.0+510.73.5
│ - CUDNN: 8.30.2 (for CUDA 11.5.0)
│ - CUTENSOR: 1.4.0 (for CUDA 11.5.0)
│
│ Toolchain:
│ - Julia: 1.7.3
│ - LLVM: 12.0.1
│ - PTX ISA support: 3.2, 4.0, 4.1, 4.2, 4.3, 5.0, 6.0, 6.1, 6.3, 6.4, 6.5, 7.0
│ - Device capability support: sm_35, sm_37, sm_50, sm_52, sm_53, sm_60, sm_61, sm_62, sm_70, sm_72, sm_75, sm_80
│
│ 1 device:
└ 0: NVIDIA GeForce RTX 3070 Laptop GPU (sm_86, 7.787 GiB / 8.000 GiB available)
[ Info: Testing using 1 device(s): 0. NVIDIA GeForce RTX 3070 Laptop GPU (UUID bfdb6f60-dbcf-1a82-ca79-1c8b947c3f35)
| | ---------------- GPU ---------------- | ---------------- CPU ---------------- |
Test (Worker) | Time (s) | GC (s) | GC % | Alloc (MB) | RSS (MB) | GC (s) | GC % | Alloc (MB) | RSS (MB) |
Test (Worker) | Time (s) | GC (s) | GC % | Alloc (MB) | RSS (MB) | GC (s) | GC % | Alloc (MB) | RSS (MB) |
initialization (2) | 5.64 | 0.00 | 0.0 | 0.00 | 165.00 | 0.08 | 1.4 | 512.27 | 843.59 |
gpuarrays/indexing scalar (2) | 25.43 | 0.00 | 0.0 | 0.01 | 181.00 | 1.20 | 4.7 | 4688.43 | 843.59 |
gpuarrays/reductions/reducedim! (2) | 90.88 | 0.00 | 0.0 | 1.03 | 183.00 | 8.52 | 9.4 | 22482.18 | 1163.61 |
gpuarrays/linalg (2) | 54.46 | 0.00 | 0.0 | 11.59 | 551.00 | 3.43 | 6.3 | 10524.64 | 2332.89 |
gpuarrays/math/power (2) | 35.13 | 0.00 | 0.0 | 0.01 | 551.00 | 3.23 | 9.2 | 8032.86 | 2492.46 |
gpuarrays/linalg/mul!/vector-matrix (2) | 55.05 | 0.00 | 0.0 | 0.02 | 551.00 | 3.45 | 6.3 | 11596.70 | 2833.54 |
gpuarrays/indexing multidimensional (2) | 37.84 | 0.00 | 0.0 | 1.21 | 183.00 | 2.40 | 6.4 | 7920.18 | 2833.54 |
gpuarrays/interface (2) | 4.45 | 0.00 | 0.0 | 0.00 | 181.00 | 0.31 | 6.9 | 858.64 | 2833.54 |
gpuarrays/reductions/any all count (2) | 16.45 | 0.00 | 0.0 | 0.00 | 181.00 | 1.46 | 8.9 | 4293.68 | 2833.54 |
gpuarrays/reductions/minimum maximum extrema (2) | 140.12 | 0.01 | 0.0 | 1.41 | 185.00 | 10.18 | 7.3 | 31924.33 | 2954.52 |
gpuarrays/uniformscaling (2) | 8.35 | 0.00 | 0.0 | 0.01 | 181.00 | 0.41 | 4.9 | 1288.85 | 2954.52 |
gpuarrays/linalg/mul!/matrix-matrix (2) | 107.47 | 0.01 | 0.0 | 0.12 | 553.00 | 6.31 | 5.9 | 19136.07 | 4212.98 |
gpuarrays/math/intrinsics (2) | 3.74 | 0.00 | 0.0 | 0.00 | 181.00 | 0.19 | 5.0 | 711.11 | 4212.98 |
gpuarrays/linalg/norm (2) | 268.94 | 0.01 | 0.0 | 0.02 | 257.00 | 21.18 | 7.9 | 52430.53 | 5626.27 |
gpuarrays/statistics (2) | 77.79 | 0.00 | 0.0 | 1.51 | 551.00 | 4.21 | 5.4 | 13876.69 | 6655.55 |
gpuarrays/reductions/mapreduce (2) | 203.11 | 0.01 | 0.0 | 1.81 | 185.00 | 11.73 | 5.8 | 37609.42 | 6729.29 |
gpuarrays/constructors (2) | 19.20 | 0.00 | 0.0 | 0.08 | 181.00 | 0.68 | 3.5 | 2569.40 | 6729.29 |
gpuarrays/random (2) | 28.17 | 0.00 | 0.0 | 0.03 | 181.00 | 1.52 | 5.4 | 4786.98 | 6729.29 |
gpuarrays/base (2) | 26.12 | 0.00 | 0.0 | 8.82 | 181.00 | 1.37 | 5.2 | 4506.52 | 6816.72 |
gpuarrays/reductions/== isequal (2) | 98.03 | 0.01 | 0.0 | 1.07 | 183.00 | 10.38 | 10.6 | 16597.95 | 7809.12 |
gpuarrays/broadcasting (2) | 362.62 | 0.01 | 0.0 | 2.00 | 185.00 | 42.96 | 11.8 | 53772.92 | 8699.58 |
gpuarrays/reductions/mapreducedim! (2) | 56.83 | 0.00 | 0.0 | 1.54 | 183.00 | 6.86 | 12.1 | 7394.71 | 8699.58 |
gpuarrays/reductions/reduce (2) | 19.58 | 0.00 | 0.0 | 1.21 | 183.00 | 0.44 | 2.3 | 2226.51 | 8699.58 |
gpuarrays/reductions/sum prod (2) | 279.16 | 0.01 | 0.0 | 3.24 | 185.00 | 34.08 | 12.2 | 40919.47 | 10091.04 |
apiutils (2) | 0.11 | 0.00 | 0.0 | 0.00 | 165.00 | 0.00 | 0.0 | 0.81 | 10091.04 |
array (2) | 153.18 | 0.01 | 0.0 | 1266.37 | 1341.00 | 36.18 | 23.6 | 19461.83 | 10680.45 |
broadcast (2) | 22.37 | 0.00 | 0.0 | 0.00 | 1333.00 | 3.60 | 16.1 | 2901.68 | 10680.45 |
codegen (2) | 10.09 | 0.00 | 0.0 | 0.00 | 1393.00 | 1.39 | 13.7 | 1456.06 | 10680.45 |
cublas (2) | 83.06 | 0.02 | 0.0 | 14.55 | 1717.00 | 9.41 | 11.3 | 12030.98 | 11289.79 |
cudadrv (2) | 6.99 | 0.00 | 0.0 | 0.00 | 1335.00 | 0.28 | 4.1 | 791.80 | 11308.88 |
cufft (2) | 24.73 | 0.00 | 0.0 | 233.38 | 1437.00 | 2.91 | 11.8 | 2843.60 | 11314.30 |
curand (2) | 0.17 | 0.00 | 0.0 | 0.00 | 1327.00 | 0.09 | 50.0 | 3.75 | 11314.30 |
cusparse (2) | 49.55 | 0.02 | 0.0 | 10.81 | 1491.00 | 2.72 | 5.5 | 5858.52 | 11459.28 |
examples (2) | 85.06 | 0.00 | 0.0 | 0.00 | 1317.00 | 0.00 | 0.0 | 45.06 | 11459.28 |
exceptions (2) | 53.14 | 0.00 | 0.0 | 0.00 | 1317.00 | 0.00 | 0.0 | 1.57 | 11459.28 |
execution (2) | 94.27 | 0.00 | 0.0 | 0.49 | 1401.00 | 21.67 | 23.0 | 11410.60 | 11459.28 |
iterator (2) | 2.11 | 0.00 | 0.0 | 1.93 | 1317.00 | 0.00 | 0.0 | 360.93 | 11459.28 |
linalg (2) | 38.90 | 0.00 | 0.0 | 9.03 | 1405.00 | 8.86 | 22.8 | 5066.35 | 11459.28 |
nvml (2) | 0.51 | 0.00 | 0.0 | 0.00 | 1317.00 | 0.00 | 0.0 | 28.69 | 11459.28 |
nvtx (2) | 0.23 | 0.00 | 0.0 | 0.00 | 1317.00 | 0.00 | 0.0 | 34.94 | 11459.28 |
pointer (2) | 0.25 | 0.00 | 0.0 | 0.00 | 1317.00 | 0.00 | 0.0 | 11.54 | 11459.28 |
pool (2) | 4.44 | 0.00 | 0.0 | 0.00 | 165.00 | 2.79 | 62.9 | 244.88 | 11459.28 |
random (2) | 31.17 | 0.00 | 0.0 | 256.58 | 445.00 | 6.35 | 20.4 | 3519.72 | 11459.28 |
sorting (2) | 227.27 | 0.01 | 0.0 | 543.84 | 1777.00 | 50.72 | 22.3 | 28578.54 | 13741.85 |
texture (2) | 54.81 | 0.00 | 0.0 | 0.09 | 443.00 | 8.27 | 15.1 | 7309.86 | 13741.85 |
threading (2) | 2.94 | 0.00 | 0.0 | 10.94 | 811.00 | 0.45 | 15.5 | 299.54 | 13741.85 |
utils (2) | 0.80 | 0.00 | 0.0 | 0.00 | 421.00 | 0.00 | 0.0 | 76.69 | 13741.85 |
cudnn/activation (2) | 1.83 | 0.00 | 0.0 | 0.00 | 545.00 | 0.14 | 7.4 | 186.83 | 13741.85 |
cudnn/convolution (2) | 0.07 | 0.00 | 0.0 | 0.00 | 421.00 | 0.00 | 0.0 | 6.14 | 13741.85 |
cudnn/dropout (2) | 1.37 | 0.00 | 0.0 | 1.43 | 549.00 | 0.22 | 16.1 | 88.64 | 13741.85 |
cudnn/inplace (2) | 0.85 | 0.00 | 0.0 | 0.01 | 549.00 | 0.19 | 22.4 | 50.14 | 13741.85 |
cudnn/multiheadattn (2) | 12.14 | 0.00 | 0.0 | 0.15 | 927.00 | 1.91 | 15.7 | 1592.27 | 13741.85 |
cudnn/normalization (2) | 15.76 | 0.00 | 0.0 | 0.08 | 589.00 | 1.66 | 10.6 | 1682.89 | 13766.65 |
cudnn/optensor (2) | 1.24 | 0.00 | 0.0 | 0.00 | 545.00 | 0.13 | 10.7 | 136.46 | 13766.79 |
cudnn/pooling (2) | 4.49 | 0.00 | 0.0 | 0.06 | 545.00 | 0.17 | 3.8 | 666.79 | 13766.79 |
cudnn/reduce (2) | 1.42 | 0.00 | 0.0 | 0.02 | 545.00 | 0.14 | 10.0 | 207.65 | 13766.79 |
cudnn/rnn (2) | 6.24 | 0.00 | 0.1 | 898.13 | 1567.00 | 0.22 | 3.4 | 649.49 | 13865.52 |
cudnn/softmax (2) | 0.98 | 0.00 | 0.0 | 0.01 | 1185.00 | 0.12 | 12.5 | 73.36 | 13865.70 |
cudnn/tensor (2) | 1.99 | 0.00 | 0.0 | 0.00 | 175.00 | 1.65 | 83.0 | 25.64 | 13865.70 |
cusolver/dense (2) | 136.80 | 0.04 | 0.0 | 1467.10 | 617.00 | 29.02 | 21.2 | 15502.48 | 14179.64 |
cusolver/multigpu (2) | 7.68 | 0.00 | 0.0 | 545.89 | 979.00 | 0.19 | 2.5 | 991.26 | 14179.64 |
cusolver/sparse (2) | 5.29 | 0.00 | 0.0 | 0.18 | 721.00 | 0.37 | 6.9 | 420.74 | 14179.64 |
cusparse/broadcast (2) | 75.65 | 0.00 | 0.0 | 0.02 | 617.00 | 14.20 | 18.8 | 8232.49 | 14371.40 |
cusparse/conversions (2) | 8.84 | 0.00 | 0.0 | 0.02 | 615.00 | 0.50 | 5.7 | 1089.83 | 14371.40 |
cusparse/device (2) | 0.32 | 0.00 | 0.0 | 0.01 | 615.00 | 0.11 | 34.3 | 3.66 | 14371.40 |
cusparse/generic (2) | 1.85 | 0.00 | 0.0 | 0.05 | 615.00 | 0.11 | 5.9 | 182.92 | 14371.40 |
cusparse/interfaces (2) | 34.24 | 0.01 | 0.0 | 0.97 | 615.00 | 3.63 | 10.6 | 3770.70 | 14371.40 |
cusparse/linalg (2) | 4.44 | 0.00 | 0.0 | 0.01 | 615.00 | 0.10 | 2.2 | 560.27 | 14371.40 |
cutensor/base (2) | 0.11 | 0.00 | 0.0 | 0.05 | 517.00 | 0.00 | 0.0 | 14.68 | 14371.40 |
cutensor/contractions (2) | 22.99 | 0.01 | 0.0 | 10626.41 | 1911.00 | 1.12 | 4.9 | 3072.22 | 14597.90 |
cutensor/elementwise_binary (2) | 21.48 | 0.00 | 0.0 | 6.11 | 1427.00 | 0.78 | 3.6 | 2347.49 | 14597.90 |
cutensor/elementwise_trinary (2) | 26.38 | 0.00 | 0.0 | 2.71 | 1427.00 | 0.98 | 3.7 | 3145.61 | 14597.90 |
cutensor/permutations (2) | 2.94 | 0.00 | 0.0 | 1.36 | 1427.00 | 0.12 | 3.9 | 312.68 | 14597.90 |
cutensor/reductions (2) | 22.97 | 0.00 | 0.0 | 36.36 | 1427.00 | 0.42 | 1.8 | 2181.72 | 15127.08 |
device/array (2) | 8.47 | 0.00 | 0.0 | 0.00 | 1333.00 | 0.33 | 3.9 | 1149.69 | 15127.08 |
device/intrinsics (2) | 56.15 | 0.00 | 0.0 | 0.00 | 2015.00 | 10.61 | 18.9 | 7190.85 | 15161.48 |
device/ldg (2) | 10.23 | 0.00 | 0.0 | 0.00 | 1333.00 | 0.33 | 3.3 | 1598.80 | 15161.48 |
device/random (2) | 70.45 | 0.00 | 0.0 | 0.17 | 1335.00 | 13.64 | 19.4 | 7687.06 | 15161.48 |
device/intrinsics/atomics (2) | 122.21 | 0.00 | 0.0 | 0.00 | 1335.00 | 24.14 | 19.7 | 13241.89 | 15169.65 |
device/intrinsics/math (2) | 87.89 | 0.00 | 0.0 | 0.00 | 1363.00 | 15.47 | 17.6 | 8747.68 | 15202.04 |
device/intrinsics/memory (2) | 33.16 | 0.00 | 0.0 | 0.02 | 1333.00 | 6.44 | 19.4 | 4266.41 | 15202.04 |
device/intrinsics/output (2) | 38.30 | 0.00 | 0.0 | 0.00 | 1333.00 | 8.02 | 20.9 | 4777.54 | 15202.04 |
device/intrinsics/wmma (2) | 132.81 | 0.01 | 0.0 | 0.63 | 1337.00 | 28.43 | 21.4 | 15981.42 | 15469.16 |
Testing finished in 1 hour, 10 minutes, 21 seconds, 161 milliseconds
Test Summary: | Pass Broken Total
Overall | 17002 5 17007
SUCCESS
Testing CUDA tests passedThe output of the test already provides us with a lot of information about the card and the supported CUDA library versions. Note that CUDA.jl will look up the NVIDIA driver (the only requirement) and download the best CUDA version on its own. Therefore, it is not necessarily the same version as installed on the system.
Right away, we are able to use the high level functionality of the CUDA.jl package with the implicit parallelism programming model.
Implicit parallelism programming
Let us look at some examples:
julia> a = CuArray([1.0, 2.0, 3.0, 4.0])
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
1.0
2.0
3.0
4.0
julia> a .+= 1
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
2.0
3.0
4.0
5.0
julia> a .+= a
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
4.0
6.0
8.0
10.0
julia> sum(a)
28.0
julia> A = a * a'
4×4 CuArray{Float64, 2, CUDA.Mem.DeviceBuffer}:
16.0 24.0 32.0 40.0
24.0 36.0 48.0 60.0
32.0 48.0 64.0 80.0
40.0 60.0 80.0 100.0
julia> d = CUDA.rand(length(a))
4-element CuArray{Float32, 1, CUDA.Mem.DeviceBuffer}:
0.2327924
0.06764824
0.7085522
0.97067034
julia> using LinearAlgebra
julia> mul!(d, A, d)
ERROR: ArgumentError: output matrix must not be aliased with input matrix
Stacktrace:
[1] gemm_dispatch!(C::CuArray{Float32, 1, CUDA.Mem.DeviceBuffer}, A::CuArray{Float64, 2, CUDA.Mem.DeviceBuffer}, B::CuArray{Float32, 1, CUDA.Mem.DeviceBuffer}, alpha::Bool, beta::Bool)
@ CUDA.CUBLAS ~/.julia/packages/CUDA/tTK8Y/lib/cublas/linalg.jl:269
[2] gemv_dispatch!(Y::CuArray{Float32, 1, CUDA.Mem.DeviceBuffer}, A::CuArray{Float64, 2, CUDA.Mem.DeviceBuffer}, B::CuArray{Float32, 1, CUDA.Mem.DeviceBuffer}, alpha::Bool, beta::Bool)
@ CUDA.CUBLAS ~/.julia/packages/CUDA/tTK8Y/lib/cublas/linalg.jl:181
[3] mul!
@ ~/.julia/packages/CUDA/tTK8Y/lib/cublas/linalg.jl:188 [inlined]
[4] mul!(C::CuArray{Float32, 1, CUDA.Mem.DeviceBuffer}, A::CuArray{Float64, 2, CUDA.Mem.DeviceBuffer}, B::CuArray{Float32, 1, CUDA.Mem.DeviceBuffer})
@ LinearAlgebra /opt/julia-1.7.3/share/julia/stdlib/v1.7/LinearAlgebra/src/matmul.jl:275
[5] top-level scope
@ REPL[23]:1
[6] top-level scope
@ ~/.julia/packages/CUDA/tTK8Y/src/initialization.jl:52
julia> d = CUDA.rand(Float64, length(a))
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
0.6985405365128223
0.1389900111808831
0.41880569903314474
0.47366941788943956
julia> mul!(d, A, d)
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
46.86096793718457
70.29145190577685
93.72193587436914
117.15241984296142
julia> qr(d)
CUDA.CUSOLVER.CuQR{Float64, CuArray{Float64, 2, CUDA.Mem.DeviceBuffer}} with factors Q and R:
[┌ Warning: Performing scalar indexing on task Task (runnable) @0x00007f27b8a15150.
│ Invocation of CuQRPackedQ getindex resulted in scalar indexing of a GPU array.
│ This is typically caused by calling an iterating implementation of a method.
│ Such implementations *do not* execute on the GPU, but very slowly on the CPU,
│ and therefore are only permitted from the REPL for prototyping purposes.
│ If you did intend to index this array, annotate the caller with @allowscalar.
└ @ GPUArraysCore ~/.julia/packages/GPUArraysCore/rSIl2/src/GPUArraysCore.jl:81
-0.2721655269759087 -0.40824829046386296 -0.5443310539518174 -0.6804138174397716; -0.40824829046386296 0.8689897948556636 -0.17468027352578192 -0.21835034190722735; -0.5443310539518174 -0.1746802735257819 0.7670929686322908 -0.29113378920963645; -0.6804138174397716 -0.21835034190722735 -0.2911337892096365 0.6360827634879545]
[-172.17819044853752;;]
julia> broadcast(a) do x sin(x) end
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
-0.7568024953079282
-0.27941549819892586
0.9893582466233818
-0.5440211108893699
julia> reduce(+, a)
28.0
julia> accumulate(+, a)
4-element CuArray{Float64, 1, CUDA.Mem.DeviceBuffer}:
4.0
10.0
18.0
28.0With this functionality we can code up a lot of problems in scientific computing and port it to the GPU without knowing anything else than how to include CUDA.jl and define/allocate the appropriate data on the GPU. It is worth noting, that this is also highly efficient, as the people behind CUDA.jl optimize the calls with the same features as Julia itself and they work extraordinary well.
Of course we can not express everything in these terms. Sometimes it is necessary to write a specific CUDA kernel function. Note, that kernel is the technical name given to a function that is executed on the GPU.
example on the GPU

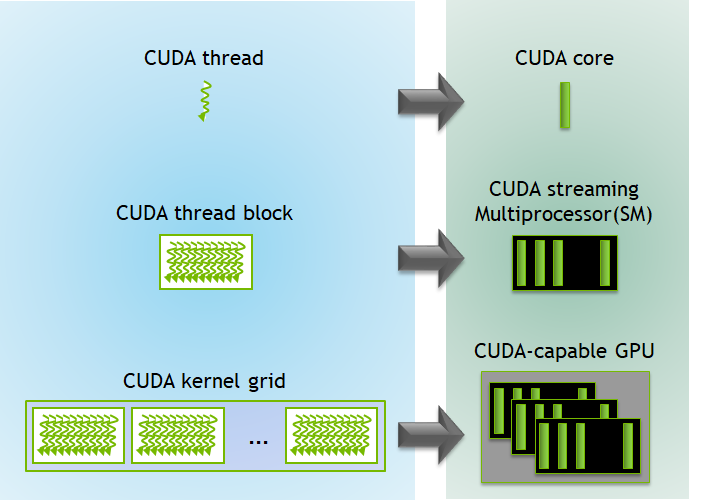

The main idea is to use the most of the GPU by performing as many operations in parallel as possible, this also means we need to represent M as a vector again. The GPU at hand supports a maximum of 1024 threads, so let us use all of them.
There is also one additional thing to keep in mind, that is, a kernel can not return a value. That means we need to give M as an input variable rather than an output variable and in order to stick to the Julia convention we define the kernel as:
function sample_M_kernel!(n::Int64, M::CuDeviceVector)
tid = threadIdx().x
for _ in 1:n
if (rand()^2 + rand()^2) < 1
@inbounds M[tid] += 1
end
end
return nothing
endThis looks very similar to our function sample_M_threaded_tasksafe. Instead of threadid() as we had it in multithreading, this time the id is queried by threadIdx().x. The .x is due to the fact that we could also have two or three dimensional arrays (remember GPUs were designed to work with images).
The kernel is now called with the @cuda macro and the number of threads given as an argument. Note, that we also define M to have dimension and of type Int32.
We use Int32 as on GPUs the data type has quite a high impact on the performance. With integers this is not that important but if we are not working on a high level server grades GPU the double (Float64) performance will be significantly slower than single (Float32). Secondly, there is usually less storage on the GPU.
The resulting host side function looks as follows:
function sample_M_gpu(N::Int64)
nthreads = 2^10
len, _ = divrem(N, nthreads)
M = CUDA.zeros(Int32, nthreads)
@cuda threads = nthreads sample_M_kernel!(len, M)
return sum(M)
endFor the sake of overview, we write host and clientside function as a nested function:
function sample_M_gpu(N::Int64)
function sample_M_kernel!(n::Int64, M::CuDeviceVector)
tid = threadIdx().x
for _ in 1:n
if (rand()^2 + rand()^2) < 1
@inbounds M[tid] += 1
end
end
return nothing
end
nthreads = 2^10
len, _ = divrem(N, nthreads)
M = CUDA.zeros(Int32, nthreads)
@cuda threads = nthreads sample_M_kernel!(len, M)
return sum(M)
endand the performance:
julia> @btime sample_M_gpu(N)
1.706 s (110 allocations: 5.38 KiB)
843311533We are already faster than the standard Julia implementation but this is not yet what we were hoping for.
What we did in the above example was to use the maximal number of threads (1024) support by the used GPU and performed our operations with them. This way we only occupied one streaming multiprocessor (SM) but the GPU has several SMs - this is similar to how a CPU has multiple cores.
Multiple Streaming Multiprocessors
To get the full performance, we need to run our kernel not just with multiple threads, but also with multiple blocks.
In this technical blog from NVIDIA CUDA Refresher: The CUDA Programming Model we can read more about it. The following figure illustrates it quite nicely:
https://developer.nvidia.com/blog/cuda-refresher-cuda-programming-model/
If we use blocks, the computation of our index in M becomes a bit trickier to compute and we also need to have more storage for M.
Similar as with the threadIdx().x we have a blockIdx().x and a blockDim().x to perform this computation.
1. On the GPU this can become a bit confusing as CUDA in general does not. In this case we need to correct the blockIdx() by 1.CUDA.jl introduced optimized index types for CUDA to make sure that no storage is wasted. Therefore, we use 0x1 instead of 1 in the kernels in this section, where needed.So we end up with the following code:
function sample_M_gpu_with_blocks(N::Int64)
function sample_M_kernel!(M::CuDeviceVector)
tid = (blockIdx().x - 0x1) * blockDim().x + threadIdx().x
if (rand()^2 + rand()^2) < 1
@inbounds M[tid] += 1
end
return nothing
end
nthreads = 2^10
nblocks, _ = divrem(N, nthreads)
M = CUDA.zeros(Int8, N)
@cuda threads = nthreads blocks = nblocks sample_M_kernel!(M)
return sum(M)
endNow each thread on the GPU is doing exactly one computation (and therefore the loop inside the kernel is not needed and for performance reasons removed). Note that we have also switched to Int8 since the maximum value to be stored in M is now 1.
This gives a performance boost:
julia> @btime sample_M_gpu_with_blocks(N)
63.285 ms (110 allocations: 5.38 KiB)
843336153This is still not the most efficient way to use the GPU and in addition it is rather wasteful on memory.
Multiple operations per thread
So let us optimize the computation a bit further. Each of the threads should do n iterations. This means we need to define the number of blocks as
The kernel is a combination of the two previous kernels and the calling function needs to compute the values as defined above:
function sample_M_gpu_with_blocks_mult_op_per_thread(N::Int64)
function sample_M_kernel!(n::Int64, M::CuDeviceVector)
tid = (blockIdx().x - 0x1) * blockDim().x + threadIdx().x
for _ in 1:n
if (rand()^2 + rand()^2) < 1
@inbounds M[tid] += 1
end
end
return nothing
end
nthreads = 2^10
n = 2^6
nblocks, _ = divrem(N, n * nthreads)
M = CUDA.zeros(Int8, nblocks * nthreads)
@cuda threads = nthreads blocks = nblocks sample_M_kernel!(n, M)
return sum(M)
endNow the performance is pretty good:
julia> @btime sample_M_gpu_with_blocks_mult_op_per_thread(N)
35.493 ms (110 allocations: 5.38 KiB)
843327130One thing we have to keep in mind, is that we have defined M of type Int8 to save space and boost performance. If n become larger than it might happen that the result is too large and can no longer be stored in an 8-Bit integer (as a result an overflow would occur).
Additional notes
Like with the rest of the topics in this section we skimmed the surface and did not make a deep dive (like memory access, profiling to find slow parts in the code, multi GPU programming, multithreaded/distributed computing with GPUs and so forth). Have a look at the excellent introduction on JuliaGPU to see more about the topic and have a look at the YouTube Videos of Tim Besard for a start. Here it was only possible to give a sound idea on what is happening and how great and easy we can achieve all of it with Julia.
